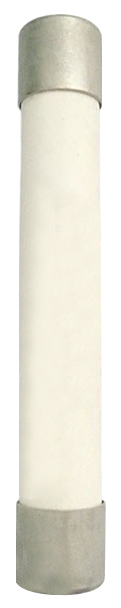

Fuse Auxiliary
|
TECHNICAL DATA |
|
| Fuse :- | |
| Normal Current | 50 Amps |
| Normal Voltage | 1000 V DC |
| Rated Current | 50 Amps |
| Fuse Holder :- | |
| Normal Voltage | 1500 Volts |
| Rated Current | 100 Amps |
| Pole | Single |
| Thermal Rated Current | 100 Amps |
| Max. cont. RMS current in the fuse | 56 Amps |
| fitted into a fuse base. | |
| Maximum Power Loss | 13 Watts |
